GW16170 802.11ah High-Power Wi-Fi HaLow M.2 Radio
A High-Power 802.11ah HaLow radio with Morse Micro MM8108-M20, M.2 2230 E-Key form factor for industrial IoT and embedded platforms.

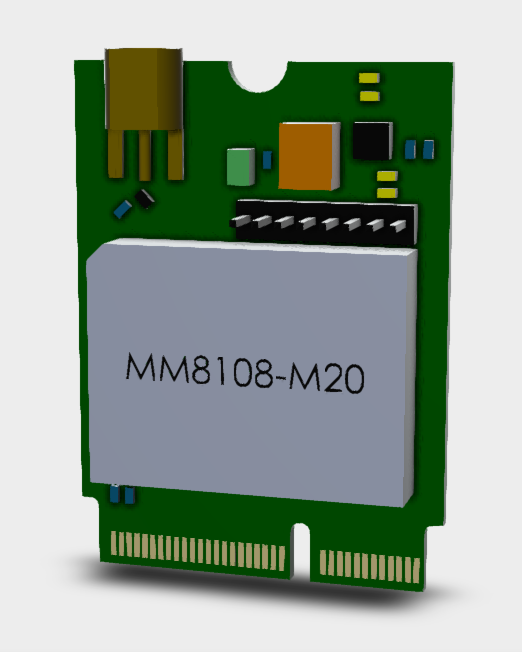

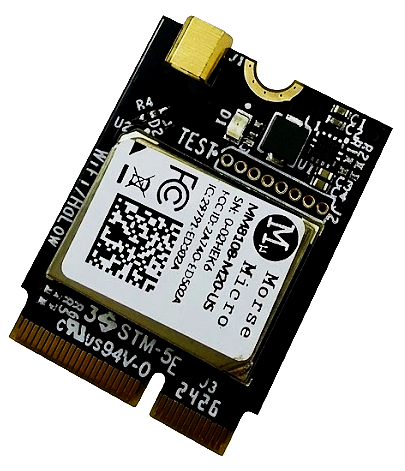

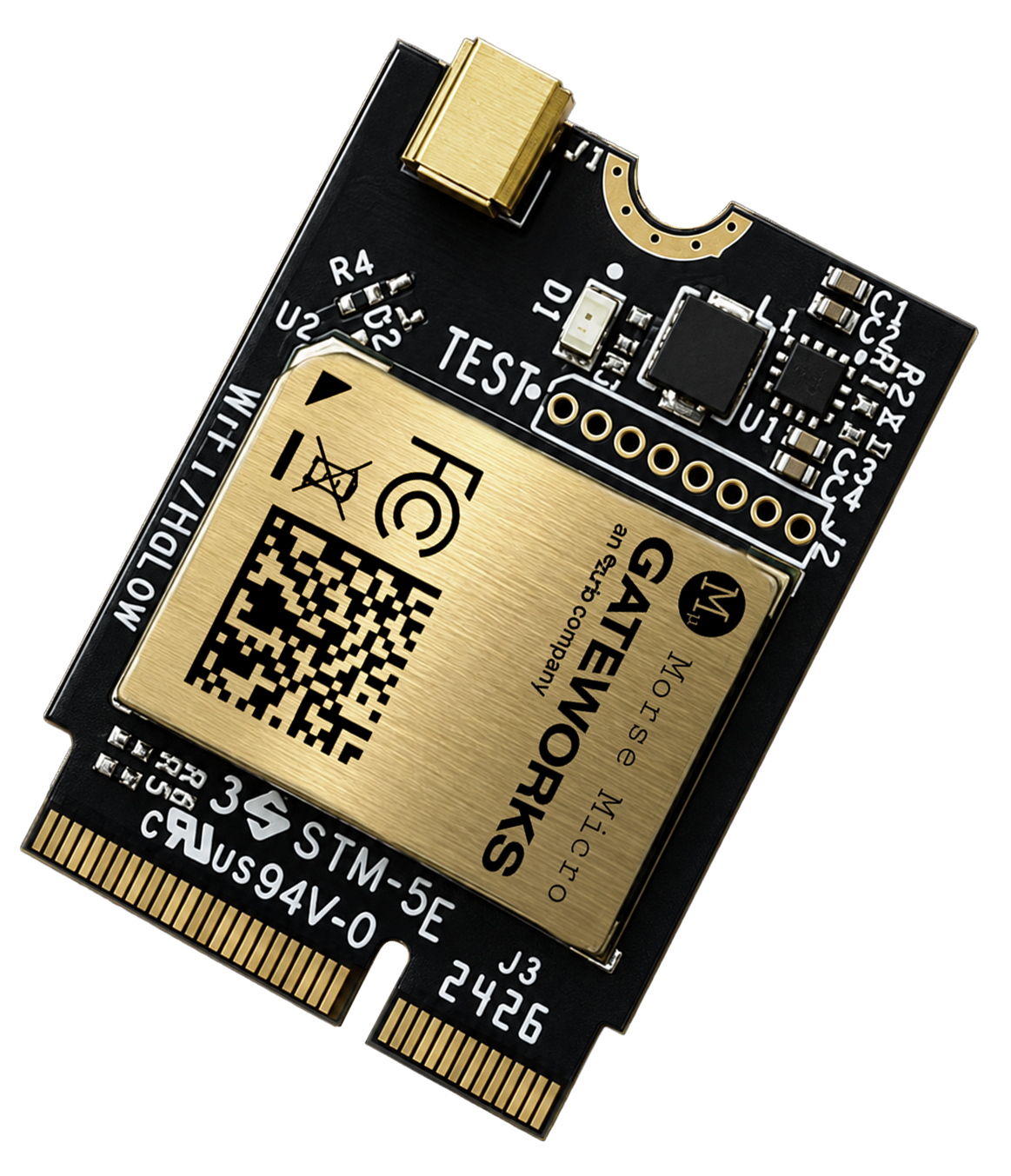

The GW16170 is a High-Power Wi-Fi HaLow (802.11ah) M.2 2230 E-Key card engineered for industrial and IoT applications. Built around the Morse Micro MM8108-M20 system-on-chip, it supports the 902–928 MHz band with up to +28.5 dBm transmit power, enabling extended range connectivity and robust penetration through buildings, walls and foliage. Standard Linux IP networking stacks are supported and the card interfaces via USB 2.0 to Gateworks single-board computers
| Key Product Features | |
|---|---|
| Function: | 802.11ah High-Power HaLow Wireless (Morse Micro MM8108-M20 Chipset) |
| Frequency: | 902 ~ 928 MHz |
| Data Rate: | Up to 43.3 Mbps |
| Power: | Up to +28.5dBm Transmit Power |
| Interface: | USB 2.0 |
| Form Factor: | M.2 E-Key 2230 |
| Software: | Software Wiki |
| Showcase: | 802.11ah Showcase |
| For Use With: | Gateworks Industrial SBCs |
- 802.11ah M.2 2230 E-Key High-Power Wi-Fi HaLow Radio
- Morse Micro MM8108-M20-US 802.11ah Module
- IEEE 802.11ah Wi-Fi HaLow
- Up to 43.3Mbps data rate
- Supports 1/2/4/8 MHz bandwidth
- Access point and station mode
- Security: OPEN, WPA2-PSK(AES), WPA3-OWE, WPA3-SAE
- 902 ~ 928 MHz Frequency
- Up to +28.5dBm Transmit Power
- MMCX Antenna port
- Uses standard Linux IP framework
- FCC Certified
- USB Communication (SDIO and SPI Optional)
- M.2 2230 E-Key Form Factor with USB Signaling
- Compatible with Venice, VeniceFLEX and Catalina SBCs
- Use GW16151 M.2 Adapter for standard Venice SBCs
- Select the M.2 E-Key FSA for use with VeniceFLEX or Catalina SBCs (GW16FE0)
- -40°C to +85°C Operating Temperature
- Made in the USA
- 1 Year Warranty
The GW16170 is a high-power, long-range, 900MHz 802.11ah, M.2 2230 E-Key Wi-Fi radio designed to provide Wi-Fi HaLow wireless communication utilizing Gateworks Single Board Computers. The 802.11ah radio is targeted towards Internet of Things (IoT) applications.
The GW16170 features a Morse Micro MM8108-M20-US 802.11ah module with up to 28.5dBm transmit power. The radio operates in the 900MHz license-exempt band which allows it to penetrate buildings, walls and foliage much better than standard 2.4G/5G Wi-Fi radios. Additionally, 802.11ah provides a much greater range (1km+) and higher bandwidth (up to 43Mbps) over other Sub 1GHz protocols like LoRa and Sigfox.
Other advantages include a higher client count (100+) and lower power. Standard Wi-Fi IP connectivity software, including Linux tools, commands and interfaces are also supported allowing for quick application integration. The Gateworks Single Board Computer communicates to the module using USB signaling which is supported on M.2 E-Key connector interfaces. Compatible with the Gateworks Venice & VeniceFLEX SBC family and other Gateworks SBCs.
A robust MMCX antenna connector allows for a variety of external antenna choices. Antenna and cables are sold separately. Use GW16151 M.2 Adapter for Venice SBCs. SDIO & SPI interfaces are optional for high volume custom designs.
*Disclaimer: This Wi-Fi HaLow M.2 Card has only been tested on Gateworks Single Board Computers. Gateworks only provides support when used on a Gateworks SBC.
