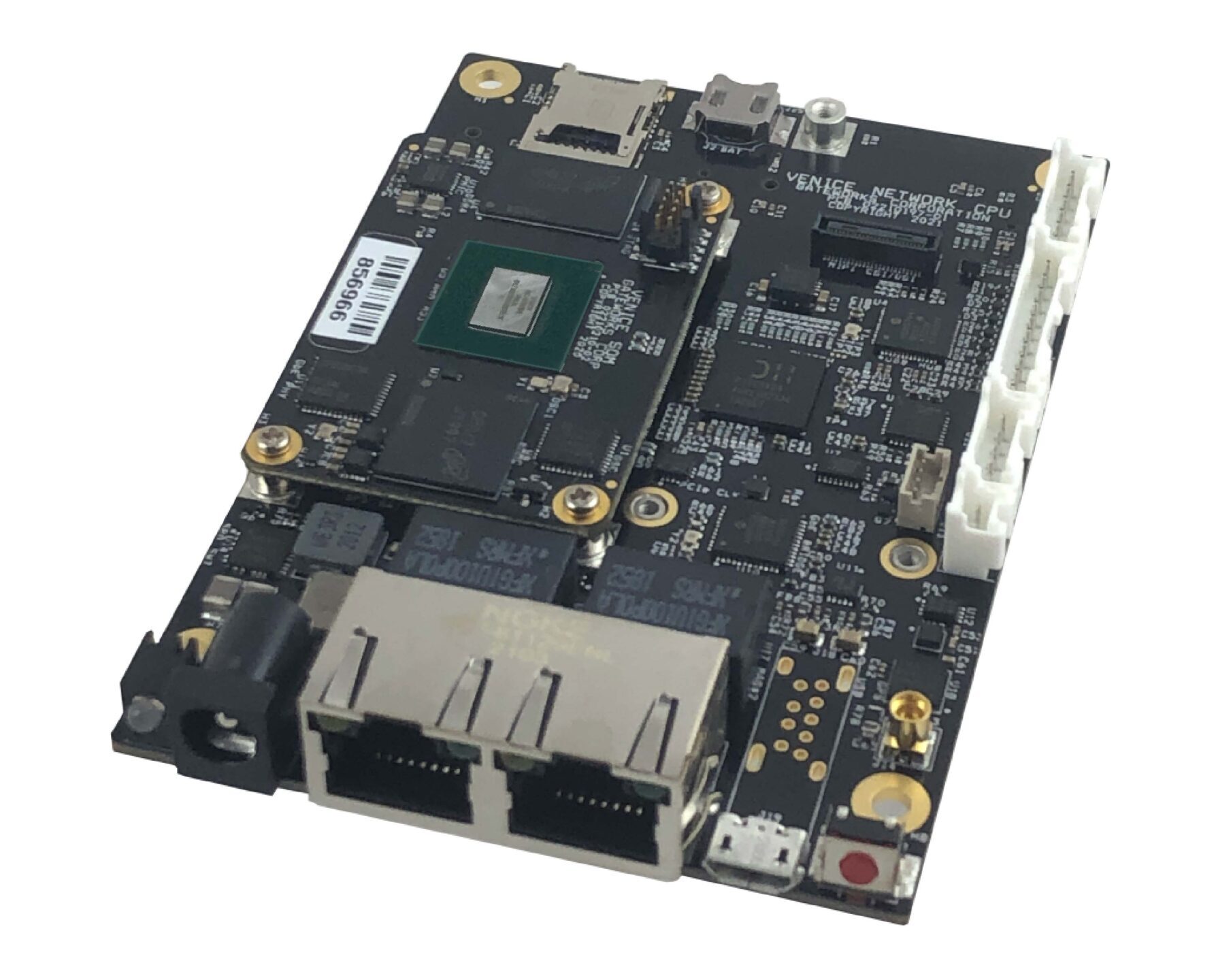

Venice GW7200 Rugged & Industrial Single Board Computer

The GW7200-00 is a member of the Gateworks 7th generation Venice family of rugged and industrial single board computers.

This embedded single board computer features 2 Gigabit Ethernet ports, 2 Mini-PCIe slots and quality that comes from being made in the USA. Designed for small embedded applications such as IoT Gateways, Machine Learning, Unmanned Aerial Vehicles (UAV) equipment, digital signage, and robotics.

 Key Product Features
Processor: NXP™ i.MX 8M Mini Quad Core 1.6GHz ARM® Cortex™-A53 or
NXP™ i.MX 8M Plus Quad Core 1.6GHz ARM® Cortex™-A53
View Processor Comparison
RAM: 1 GByte LPDDR4 (up to 4GB, see Ordering Options tab below)
Flash: 8 GBytes eMMC (up to 64GB, see Ordering Options tab below)
Ethernet: Two Gigabit Ports (see Features tab below for PoE details)
Mini-PCIe: Two Sockets for Wi-Fi/Cellular (see Features tab below for details)
Video/Audio: MIPI DSI & CSI & I2S Audio (not supported with i.MX8M Plus)
Wi-Fi/BLE: Use Mini-PCIe Cards or M.2 Adapter (see Accessories tab below)
Cellular: Use Mini-PCIe Modem (see Accessories tab below)
GPS: u-blox ZOE-M8 (Optional)
Software: Linux Ubuntu Board Support Package
(OpenWrt, Yocto, Buildroot Optional)
Size: 70 x 100mm
Development Kit: GW11048 (see Ordering tab below)
Temperature Range: Industrial (-40°C to +85°C)
Features
  • NXP™ 64-bit i.MX 8M Mini or Plus 1.6GHz Quad Core ARM (View Processor Comparison)
  • 1GByte DDR4-2133 SDRAM Memory (up to 4GBytes optional)
  • 8GBytes eMMC Flash System Memory (up to 64GBytes optional)
  • Dual GbE Ethernet Ports supporting 802.3at/af and Passive PoE
  • Two High-Power Gen 2 Mini-PCIe Sockets with USB 2.0 and Nano SIM
    • Used for Wireless Wi-Fi 802.11AC/N or Cellular Modems (CATM1,4G,5G)
    • GW16140 M.2 Adapter can be used for M.2 modems
    • i.MX 8M Plus supports USB 3.0
  • MicroSD & Nano SIM slots
  • Digital I/O & Analog Port, I2C & SPI Port
  • RS232/RS485 and TTL Serial Port
  • USB 2.0 OTG Port (Optional Host Port)  (USB 3.0 supported on header with i.MX8M Plus)
  • MIPI-DSI, MIPI-CSI, I2S Audio Port (Not supported with i.MX 8M Plus)
  • Optional TPM 2.0 Security Element
  • Digital 3-axis Accelerometer
  • Optional u-blox GPS Receiver with MMCX Antenna Connector
  • Real-Time Clock with Battery Backup
  • Voltage and Temperature Monitor
  • Serial Configuration EEPROM
  • Programmable Watchdog Timer
  • 8 to 60VDC Input Voltage Range
  • Power through dedicated connector or Ethernet with 802.3af/at Active or Passive PoE
  • 3.9W@25°C Typical Operating Power
  • 15W Available for Mini-PCIe Sockets
  • Reverse Voltage Protection
  • -40°C to +85°C Operating Temperature
    • -25°C to +85°C Operating Temperature for -01 Models
  • Ubuntu Linux Board Support Package
    • OpenWrt, Yocto, Buildroot Optional
  • Rugged & industrial high-quality embedded design
  • 1 Year Warranty
  • Made in USA
Specifications
Documentation
Ordering Options

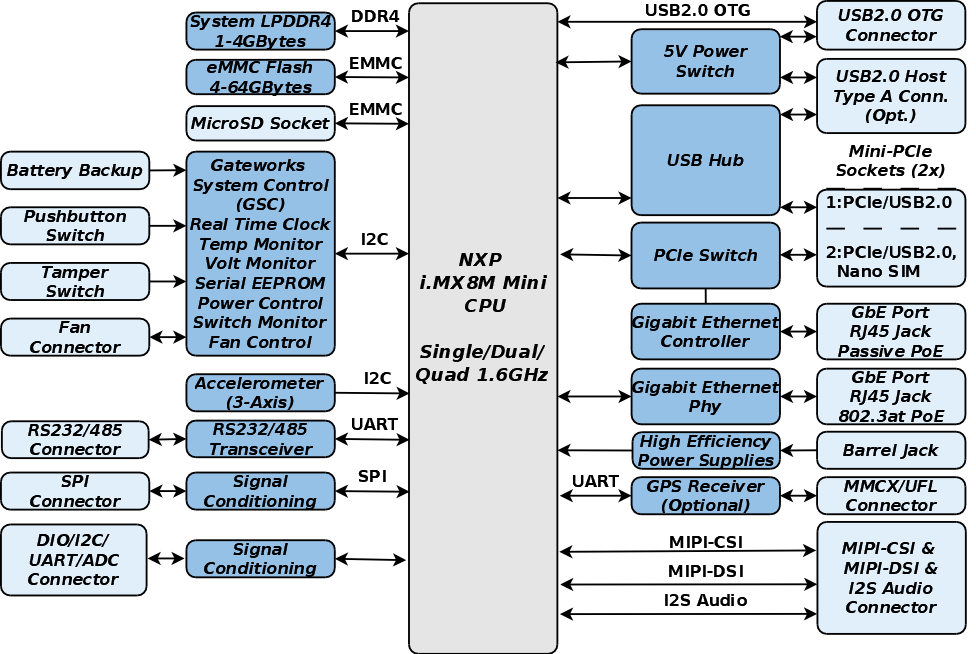

The GW7200-00 is a member of the Gateworks 7th generation Venice family of single-board computers targeted for rugged and industrial embedded applications. The GW7200 features the 64-bit NXP™ i.MX 8M Mini or Plus Quad Core ARM ® Cortex™-A53 SoC processor operating at 1.6GHz, 1GBytes of LPDDR4 DRAM, and 8GBytes of eMMC System Flash. More DRAM or eMMC optional.

Two Mini-PCIe expansion sockets can be used for PCI Express peripherals such as 802.11ax/ac/b/g/n Wi-Fi radios, 5G/4G/3G/CATM1 cellular modems. The GW16140 M.2 Adapter can be used for many high-speed 5G cellular modems. Peripheral headers support Digital I/O, Analog Input, RS232/RS485/TTL Serial, I2C and SPI. A combined MIPI-DSI/CSI header with I2S audio offers video input/output (not supported on i.MX 8M Plus). A MicroSD & Nano SIM slot are standard. A 3-axis accelerometer is standard. An optional GPS is available. A TPM 2.0 secure crypto-processor is optional for ensuring system security and integrity.

The Gateworks System Controller provides embedded features such as a real-time clock, voltage and temperature monitor, programmable pushbutton, and programmable board shut-down and wake-up for remote applications. A wide-range DC input power supply provides up to 15W of power.

Power is applied through a dedicated barrel jack or an Ethernet port in an active 802.3af/at or passive Power over Ethernet (PoE) architecture. Ubuntu Linux BSP is supported. OpenWrt, Yocto, Buildroot Optional

View Processor Comparison

Knowledge Base / Wiki

View the wiki for in-depth Linux software support, downloads and tutorials
