GW16122 Mini-PCIe Expansion Card

A Mini-PCIe Sub-1GHz Long Range Internet of Things (IoT) Radio for Rugged and Industrial Low Power Sensor Networks

 Key Product Features
Function: Long Range Sub-1GHz Communication for IoT
Data Rate: 5 - 1,000 Kbps Typical, (See Note)
Range: 100m - 3km Typical, (See Note)
This standard model is available in any quantity.
Discounts offered on orders of 25/100/1k and higher.
See the "Ordering Options" tab for available configuration options.

To request pricing or discuss configuration options, please fill out the form below or send a message to
Enter the model number that pricing is being requested for
Ensures Gateworks provides the best volume discount
Features
  • Ti CC1352P Dual-Band Wireless Radio Transmitter/Receiver
  • Sub-1 GHz Radio, 868MHz EU, 915 MHz US (default)
    • Low Power, sensor nodes can run on coin cell battery
    • Long Range Communication: -121dBm Receive Sensitivity
    • 20dBm Output Power
    • Minimal Interference – Narrow Bandwidth
    • Texas Instruments TI-RTOS and TI-15.4 Stack
    • M-Bus, IEEE802.15.4g, Contiki 6LoWPAN, Wi-SUN, KNX RF
    • Low Data Rate, typical 1Kbps-250Kbps
  • 2.4 GHz RF Output Supports:
    • Bluetooth 5 with LE Coded Phy Support
    • Thread, Zigbee
  • Analog, I2C and Digital I/O application connector
  • Compatible with Texas Instruments LaunchPad LAUNCHXL-CC1352P
  • No subscription, Open Source Software, No Consortium or Alliance Membership Required
  • Private Network - No Third Party Network Dependency or Fees
  • Mini-PCIe (USB Channel) Compatible with Gateworks Single Board Computers
  • Recommended SBCs
Specifications
Documentation
Ordering Options

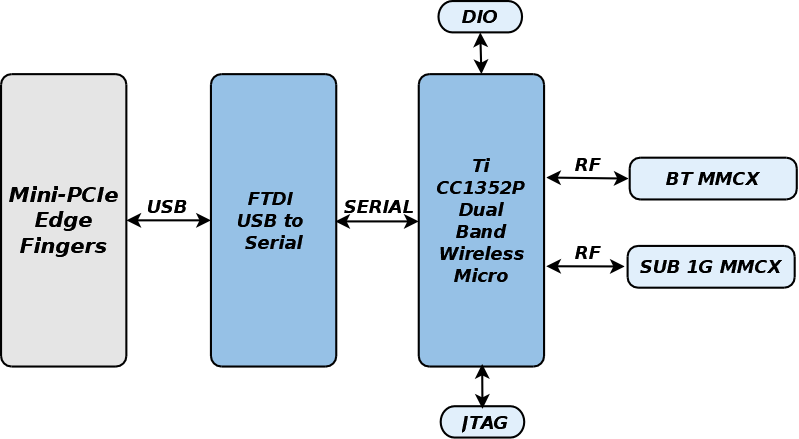

The GW16122 is Mini-PCIe radio card that provides Low-Power, Long-Range Sub-1 GHz radio communication for Internet of Things networks. The second generation GW16122 features the Texas Instruments CC1352P SimpleLinkTM Ultra-Low-Power Dual-Band Wireless MCU with an integrated 20dBm power amplifier operating at the Sub-1 GHz frequency for long distance IoT sensor applications. Software from TI includes a TI 802.15.4 Stack, 6LoWPAN, Wi-SUN and KNX RF support. The GW16122 additionally features a 2.4 GHz RF output for Bluetooth 5 LE, Thread and Zigbee. This Mini-PCIe card enables a Gateworks SBC as an IoT Gateway for other IoT nodes.
*Disclaimer: This card has only been tested on Gateworks Single Board Computers. Gateworks only provides support when used on a Gateworks SBC using Linux. All software support is community supported through Texas Instruments. Read more here*
