GW16143 High-Precision GPS Mini-PCIe Card
The GW16143 is a high-precision GPS Mini-PCIe card designed to provide precise positioning to applications utilizing Gateworks single board computers.
| Key Product Features | |
|---|---|
| Function: | High Precision GNSS/GPS |
| Supports: | GPS, GLONASS, Galileo and BeiDou |
| Accuracy: | Centimeter-level (<2cm) Accuracy GNSS positioning |
| Enhancement: | Integrated Multi-Band Real Time Kinematics (RTK) |
| Form Factor: | Mini-PCIe |
| Recommended Antenna: | u-blox ANN-MB-00 Multi-band active GNSS antenna |
| Software: | GW16143 Software Wiki |
Want to take u-blox high-precision GNSS modules to the next level with a free month of PointPerfect? Contact sales if you would like an access code when you request pricing or contact us about this product.
- High Precision GNSS Mini-PCIe card
- Concurrent reception of GPS, GLONASS, Galileo and BeiDou
- Centimeter-level (<2cm) Accuracy GNSS positioning
- Integrated Multi-Band Real Time Kinematics (RTK)
- High update rate for highly dynamic applications
- Allows for “Base” and “Rover” Operation
- Two UART headers for external correction messages,
- Timepulse (PPS) output header
- Uses Standard NMEA, UBX, SPARTN and RTCM Message Format
- USB to Serial Interface
- Status LEDs
- Rechargeable Lithium battery for faster cold start acquisition, 3.3V, 3mAH, 6.8mm
- RTCM 3.x, SSR, SBAS Corrections
- <1.0m SBAS, <0.2m SSR, <0.03m RTCM 3.x
- Supports L1 and L2 Bands
- Recommended Antenna: u-blox ANN-MB-00 Multi-band active GNSS antenna
- -40°C to +85°C Operating Temperature
- Made in USA
- 1 Year Warranty
The GW16143 is a high precision GPS Mini-PCIe card designed to provide precise positioning to applications utilizing Gateworks single board computers.

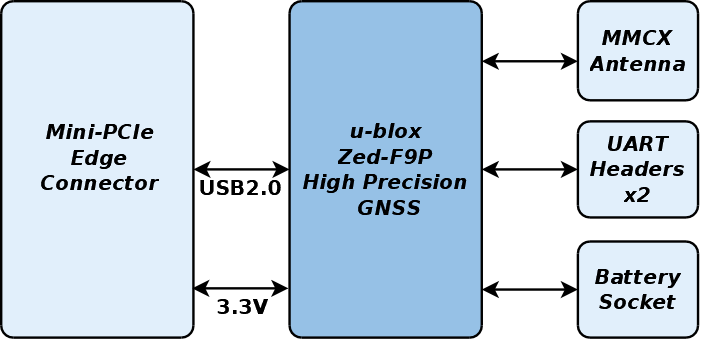

It provides centimeter-level (<2cm) accuracy via GNSS positioning with concurrent reception of GPS, GLONASS, Galileo and BeiDou. A MMCX antenna port allows for an external antenna. USB signalling is used on the Mini-PCIe connector to communicate with the host processor. Two UART headers are available for correction data via serial. A timepulse output header provides PPS signalling. To take advantage of faster acquisition times, a rechargeable 3.3V lithium battery is included. For applications that are mobile, it provides a high update rate. Multi-band Real-time kinematic (RTK) technology provides fast convergence times and reliable performance. The module supports both base and rover operation for RTK applications.
Differential GNSS devices such as the GW16143 are starting to replace survey-grade equipment. Other radio cards such as the Gateworks GW16130 Iridium Satellite Modem or GW16132 CAT-M1 modem can provide communication links for the augmentation data. The GW16143 enables precision navigation and automation of moving machinery in industrial applications such as agriculture, mining, and field mapping.
Recommended Antenna: u-blox ANN-MB-00 Multi-band active GNSS antenna
It is *not* recommended to use the Gateworks GW10044 antenna. This is for other GPS chipsets.
Visit the GW16143 Software Wiki for software information.
*Disclaimer: This card has only been tested on Gateworks Single Board Computers. Gateworks only provides support when used on a Gateworks SBC.*
