Venice GW7300 Rugged & Industrial Single Board Computer

The GW7300-00 is a member of the Gateworks 7th generation Venice family of industrial single board computers.

This embedded single board computer features 2 Gigabit Ethernet ports, 3 Mini-PCIe slots and quality that comes from being Made in the USA.  Designed for small embedded applications such as IoT Gateways, Machine Learning, Unmanned Aerial Vehicles (UAV) equipment, digital signage, and robotics.

 Key Product Features
Processor: NXP™ i.MX 8M Mini Quad Core 1.6GHz ARM® Cortex™-A53 or
NXP™ i.MX 8M Plus Quad Core 1.6GHz ARM® Cortex™-A53
View Processor Comparison
RAM: 1 GByte LPDDR4 (up to 4GB, see Ordering Options tab below)
Flash: 8 GBytes eMMC (up to 64GB, see Ordering Options tab below)
Ethernet: Two Gigabit Ports (see Features tab below for PoE details)
Mini-PCIe: Three Sockets for Wi-Fi/Cellular (see Features tab below for details)
Video/Audio: MIPI DSI & CSI & I2S Audio (not supported with i.MX 8M Plus)
Wi-Fi/BLE: Laird Sterling Wi-Fi/BLE (Opt.) Mini-PCIe Cards or M.2 Adapter (see Accessories tab below)
Cellular: Use Mini-PCIe Modem (see Accessories tab below)
GPS: u-blox ZOE-M8 (Optional)
Software: Linux Ubuntu Board Support Package
(OpenWrt, Yocto, Buildroot Optional)
Size: 105 x 100mm
Development Kit: GW11049 (see Ordering tab below)
Temperature Range: Industrial (-40°C to +85°C)
Features
  • NXP™ 64-bit i.MX 8M Mini or Plus 1.6GHz Quad Core ARM (View Processor Comparison)
  • 1GByte DDR4-2133 SDRAM Memory (up to 4GBytes optional)
  • 8GBytes eMMC Flash System Memory (up to 64GBytes optional)
  • Dual GbE Ethernet Ports supporting 802.3at/af and Passive PoE
  • Three High-Power Gen 2 Mini-PCIe Sockets with USB 2.0 and Nano SIM
    • Used for Wireless Wi-Fi 802.11AC/N or Cellular Modems (CATM1,4G,5G)
    • Two slots with PCIe signaling
    • Three slots with USB-only signaling
    • i.MX 8M Plus supports USB 3.0
  • Optional Laird Sterling 802.11b/g/n/ac Wi-Fi & BLE v5.2 Module
  • MicroSD & Nano SIM slots
  • Digital I/O & Analog Expansion
  • RS232/RS485 and TTL Serial Expansion
  • I2C & SPI Expansion
  • USB 2.0 Host and OTG Ports (USB 3.0 supported with i.MX 8M Plus)
  • MIPI-DSI, MIPI-CSI, I2S Audio Port (Not supported with i.MX 8M Plus)
  • Optional TPM 2.0 Security Element
  • Digital 3-axis Accelerometer
  • Optional u-blox GPS Receiver with MMCX Antenna Connector
  • Real-Time Clock with Battery Backup
  • Voltage and Temperature Monitor
  • Serial Configuration EEPROM
  • Programmable Watchdog Timer
  • 8 to 60VDC Input Voltage Range
  • Power through dedicated connector or Ethernet with 802.3af/at Active or Passive PoE
  • 6W@25°C Typical Operating Power
  • 15W Available for Mini-PCIe Sockets
  • Reverse Voltage Protection
  • -40°C to +85°C Operating Temperature
    • -25°C to +85°C Operating Temperature for -01 Models
  • Ubuntu Linux Board Support Package
    • OpenWrt, Yocto, Buildroot Optional
  • Rugged & industrial high-quality embedded design
  • 1 Year Warranty
  • Made in USA
Specifications
Documentation
Ordering Options

The GW7300-00 is a member of the Gateworks 7th generation Venice family of single board computers targeted for small embedded applications such as IoT Gateways, Machine Learning, Unmanned Aerial Vehicles (UAV) equipment, digital signage, and robotics.

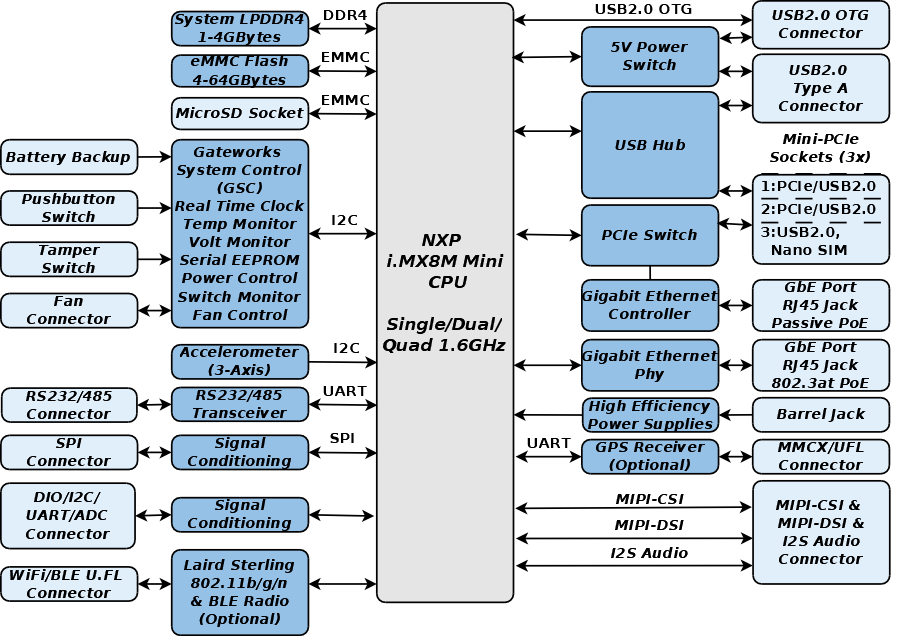

The GW7300 features the 64-bit NXP™ i.MX 8M Mini or Plus Quad Core ARM® Cortex™-A53 SoC processor operating at 1.6GHz, 1GBytes of DDR4-2133 DRAM, and 8GBytes of eMMC System Flash. More DRAM or eMMC is optional.

Three Mini-PCIe expansion sockets can be used for 802.11ax/ac/b/g/n Wi-Fi radios, 5G/4G/3G/CATM1 cellular modems and other PCI Express peripherals. Two of the three Mini-PCIe sites have PCIe signaling. Peripheral headers support Digital I/O, Analog Input, RS232/RS485/TTL Serial, I2C and SPI. A combined MIPI-DSI & MIPI-CSI header offers video output and input. I2S audio input and output are standard. A dual configuration slot supports both MicroSD & Nano SIM simultaneously. A 3-axis accelerometer is standard. An optional GPS and onboard Laird Sterling 802.11b/g/n/ac Wi-Fi/Bluetooth module are available. A TPM 2.0 secure crypto-processor is optional for ensuring system security and integrity.

The Gateworks System Controller provides embedded features such as a real-time clock, voltage and temperature monitor, serial EEPROM, programmable pushbutton switch, and advanced power management with programmable board shut-down and wake-up for remote sensor applications.

A wide-range DC input power supply provides up to 15W of power to the Mini-PCIe sockets for supporting the latest high-power radios. Power is applied through a dedicated barrel jack or an Ethernet port in an active 802.3af/at or passive Power over Ethernet (PoE) architecture.

Linux Ubuntu Board Support Package
(OpenWrt, Yocto, Buildroot Optional)
