Venice GW7100 Rugged & Industrial Single Board Computer
The GW7100-00 is a member of the Gateworks 7th generation Venice family of rugged and industrial single board computers.
This embedded single board computer features 1 Gigabit Ethernet port, 1 Mini-PCIe slot and quality that comes from being made in the USA. Designed for small embedded applications such as IoT Gateways, Machine Learning, Unmanned Aerial Vehicles (UAV) equipment, digital signage, and robotics.
| Key Product Features | |
|---|---|
| Processor: | NXP™ i.MX 8M Mini Quad Core 1.6GHz ARM® Cortex™-A53 or NXP™ i.MX 8M Plus Quad Core 1.6GHz ARM® Cortex™-A53 View Processor Comparison |
| RAM: | 1 GByte LPDDR4 (up to 4GB, see Ordering Options tab below) |
| Flash: | 8 GBytes eMMC (up to 64GB, see Ordering Options tab below) |
| Ethernet: | One Gigabit Port (see Features tab below for PoE details) |
| Mini-PCIe: | One Socket for Wi-Fi/Cellular (see Features tab below for details) |
| Video/Audio: | None |
| Wi-Fi/BLE: | Use Mini-PCIe Cards or M.2 Adapter (see Accessories tab below) |
| Cellular: | Use Mini-PCIe Modem (see Accessories tab below) |
| GPS: | u-blox ZOE-M8 (Optional) |
| Software: | Linux Ubuntu Board Support Package (OpenWrt, Yocto, Buildroot Optional) |
| Size: | 35 x 100mm |
| Development Kit: | GW11047 (see Ordering tab below) |
| Temperature Range: | Industrial (-40°C to +85°C) |
- NXP™ 64-bit i.MX 8M Mini or Plus 1.6GHz Quad Core ARM
- 1GByte DDR4-2133 SDRAM Memory
- 8GBytes eMMC Flash System Memory
- Single GbE Ethernet Port supporting Passive PoE Input (PD)
- Single High-Power Gen 2 (Gen 3 supported with i.MX 8M Plus) Mini-PCIe Socket with USB 2.0 and Nano SIM
- Used for Wireless Wi-Fi 802.11AC/N or Cellular Modems (CATM1,4G,5G)
- Nano SIM slot
- Digital I/O & Analog Port, I2C & SPI Port
- TTL Serial Port (UART)
- USB 2.0 Type C Port (USB 3.0 supported with i.MX 8M Plus)
- Digital 3-axis Accelerometer/Magnetometer MEMS
- Optional TPM 2.0 Security Element
- Optional u-blox GPS Receiver with MMCX Antenna Connector
- Real-Time Clock with Battery Backup
- Voltage and Temperature Monitor
- Serial Configuration EEPROM
- Programmable Watchdog Timer
- 8 to 60VDC Input Voltage Range
- Power through dedicated connector or Ethernet with Passive PoE
- 2.5W@25°C Typical Operating Power
- 15W Available for Mini-PCIe Socket
- Reverse Voltage Protection
- -40°C to +85°C Operating Temperature
- -25°C to +85°C Operating Temperature for -01 Models
- Ubuntu Linux Board Support Package
- Rugged & industrial high-quality embedded design
- 1 Year Warranty
- Made in USA

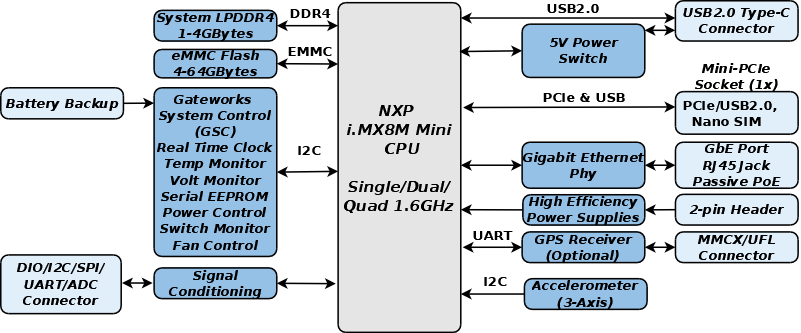

The GW7100 is a member of the Gateworks 7th generation Venice family of single board computers targeted for rugged and industrial embedded applications. The GW7100 features the 64-bit NXP™ i.MX 8M Mini or Plus Quad Core ARM® Cortex™-A53 SoC processor operating at 1.6GHz, 1GBytes of LPDDR4 DRAM, and 8GBytes of eMMC System Flash.
One Mini-PCIe expansion socket can be used for PCI Express peripherals such as 802.11ax/ac/b/g/n Wi-Fi radios, 5G/4G/3G/CATM1 cellular modems. Peripheral headers support Digital I/O, Analog Input, UART/TTL Serial, I2C and SPI. A Nano SIM slot is standard. A 3-Axis accelerometer is standard. An optional GPS is available. A TPM 2.0 secure crypto-processor is optional for ensuring system security and integrity.
The Gateworks System Controller provides embedded features such as real time clock, voltage and temperature monitor, programmable pushbutton, and programmable board shut-down and wake-up for remote applications. A wide-range DC input power supply provides up to 15W of power. Power is applied through a dedicated header or an Ethernet port in passive Power over Ethernet (PoE) (PD) architecture.
Ubuntu Linux BSP is supported. OpenWrt, Yocto, Buildroot Optional
