VeniceFLEX GW8200 Rugged & Industrial Single Board Computer
The GW8200-20 is a member of the Gateworks 8th generation VeniceFLEX family of rugged and industrial single board computers.
This embedded single board computer features a design that is CE-ready, 2 Gigabit Ethernet ports, 2 Flexible sockets (Mini-PCIe, M.2, etc) and quality that comes from being made in the USA. Designed for small embedded applications such as IoT Gateways, Machine Learning, Unmanned Aerial Vehicles (UAV) equipment, digital signage, and robotics.
| Key Product Features | |
|---|---|
| Processor: | NXP™ i.MX 8M Plus Quad Core 1.6GHz ARM® Cortex™-A53 |
| RAM: | 1 GByte LPDDR4 (up to 4GB, see Ordering Options tab below) |
| Flash: | 8 GBytes eMMC (up to 64GB, see Ordering Options tab below) |
| Ethernet: | Two Gigabit Ports (see Features tab below for PoE details) |
| Sockets: | Two Flexible Sockets for Wi-Fi/Cellular/BLE/NVMe (Mini-PCIe, M.2, etc) (see Features tab below for details) |
| Video/Audio: | None |
| Wi-Fi/BLE: | Use Mini-PCIe Cards or M.2 Adapter (see Accessories tab below) |
| Cellular: | Use Mini-PCIe Modem (see Accessories tab below) |
| GPS: | u-blox GPS (Optional) |
| Software: | Linux Ubuntu Board Support Package (OpenWrt, Yocto, Buildroot Optional) |
| Size: | 90 x 100mm |
| Development Kit: | GW11055 (see Ordering tab below) |
| Temperature Range: | Industrial (-40°C to +85°C) |
- NXP™ 64-bit i.MX 8M Plus 1.6GHz Quad Core ARM
- 1GByte DDR4-2133 SDRAM Memory (up to 4GBytes optional)
- 8GBytes eMMC Flash System Memory (up to 64GBytes optional)
- Dual GbE Ethernet Ports
- Optional GW168PB0 Adapter Required for isolated 802.3at/af PoE

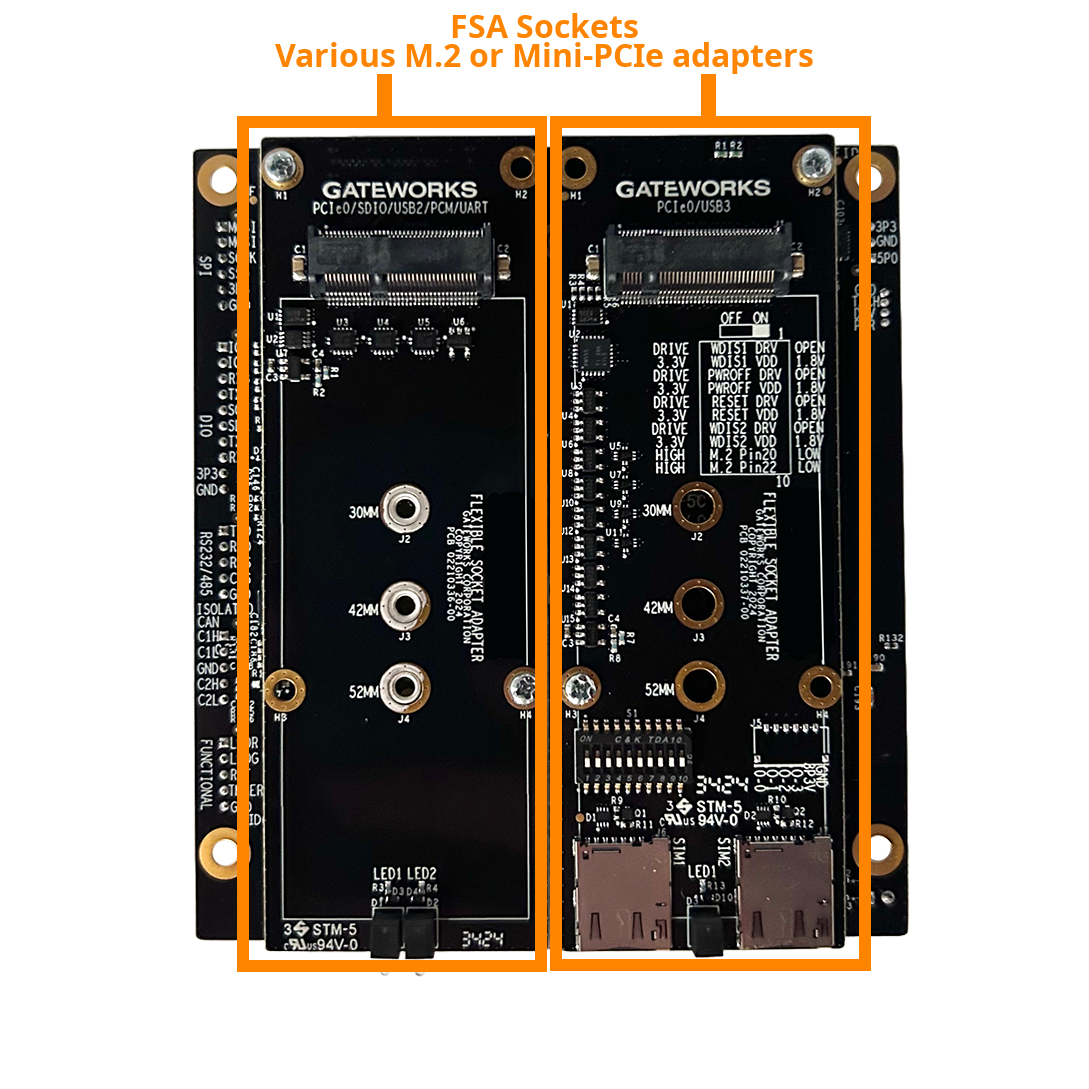

- Two High-Power FSA sockets with a variety of signals are available.
- FSA#1: USB 3.0, PCIe, SPI
FSA#2: USB 3.0, PCIe, I2C, SDIO, SPI, UART and PCM. - Choose an adapter for each FSA socket
- Can be used with optional Mini-PCIe or M.2 adapters below:
- GW16FE0 - FSA to M.2 E Key (WiFi)
- GW16FB0 - FSA to M.2 B Key (Modems)
- GW16FM0 - FSA to M.2 M Key (NVME)
- GW16FP0 - FSA to Mini-PCIe (WiFi / Cellular / Etc)
- Read more on the FSA Wiki Page
- FSA#1: USB 3.0, PCIe, SPI
- 15W Available for Flexible Sockets (Mini-PCIe/M.2)
- Two GbE Ethernet Ports
- Front Panel USB Type-C 3.0 Host Port
- Optional u-blox GPS Receiver with MMCX Antenna Connector
- Optional TPM 2.0 Security Element
- Digital I/O & Analog Port, I2C & SPI Port
- RS232/RS485 and TTL Serial Port
- Dual Isolated CAN Bus Ports
- Digital 3-axis MEMS Accelerometer
- Real-Time Clock with Battery Backup
- Voltage and Temperature Monitor, Serial Configuration EEPROM
- Programmable Watchdog Timer
- 8 to 60VDC Input Voltage Range
- Power Through a Dedicated Connector or Ethernet with an optional isolated 802.3af/at Adapter
- 4W @ 25°C Typical Operating Power
- -40°C to +85°C Operating Temperature
- Ubuntu Linux Board Support Package
- 1 Year Warranty
- Made in USA

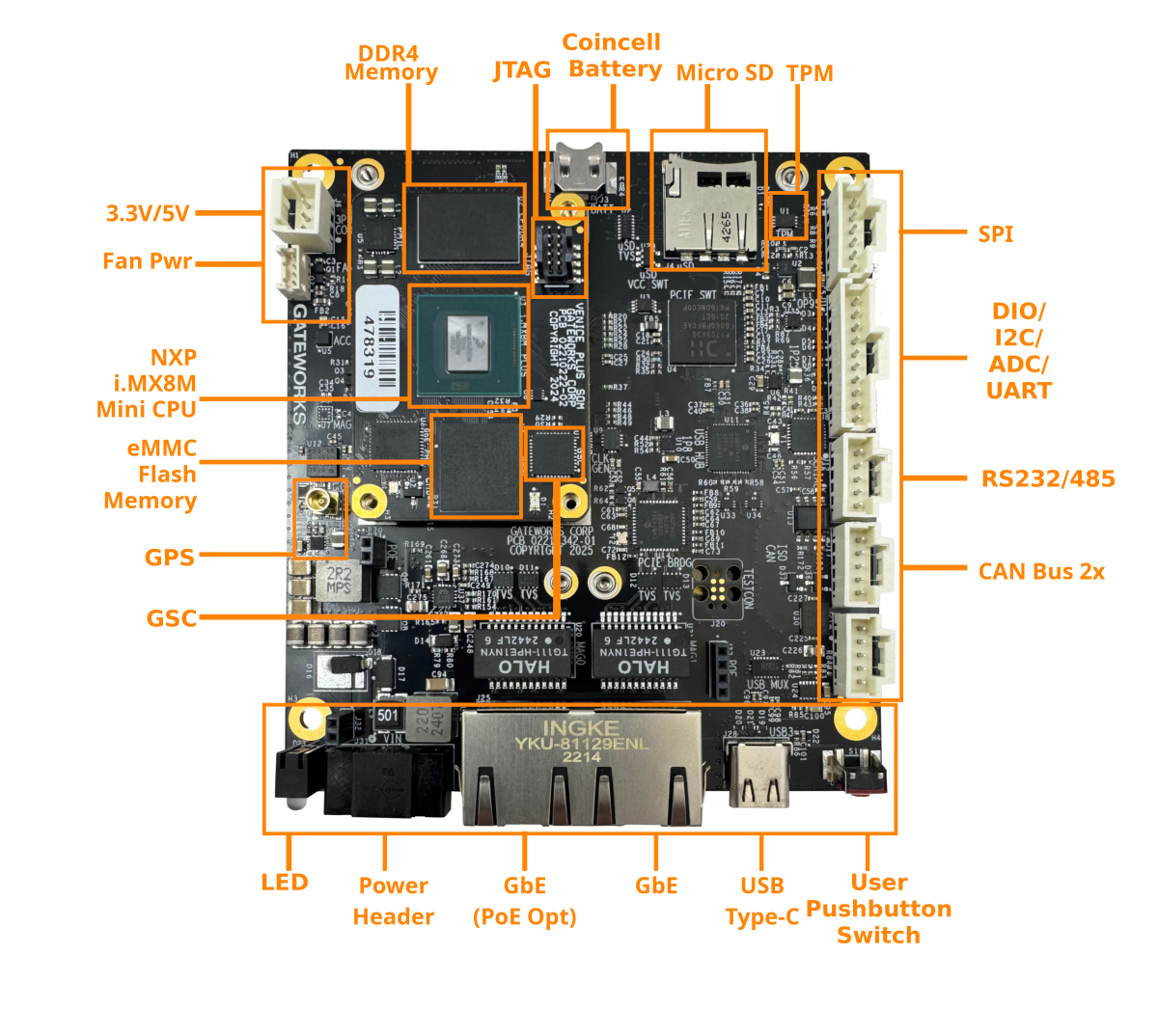

The GW8200 is a member of the Gateworks 8th generation VeniceFLEX family of single board computers targeted towards multi-radio WiFi and 5G access points, gateways and routers. The GW8200 features the NXP™ 64-bit 1.6GHz i.MX8M Plus Quad Core ARM® Cortex™-A53 SoC, two GbE ports, 1GBytes of DRAM, and 8GBytes of eMMC Flash. In addition, there are two flexible expansion sockets (FSA) for Mini-PCIe or M.2 support. These FSA sockets can support a wide variety of M.2 keys and can be used for PCIe, USB, I2C, UART, SDIO, SPI & PCM peripherals. This flexibility will also enable the support of devices with SDIO or SPI interfaces such as 802.11ah HaLow and LoRa radios. The board additionally features Digital I/O, Analog Input, RS232/RS485/TTL Serial, I2C, SPI and dual isolated CAN busses. The board also includes a 3-axis accelerometer, optional GPS receiver w/PPS support and optional TPM 2.0 security element.
This SBC is CE-ready and has been designed to pass the stringent surge, burst and ESD requirements for CE industrial products. The Gateworks System Controller (GSC) provides embedded features such as a real-time clock, voltage and temperature monitoring, programmable pushbutton, and programmable board shut-down and wake-up for remote applications. A wide-range DC input power supply allows the board to be used in a variety of environments. Power is applied through a dedicated power header or over Ethernet using an optional isolated 802.3af/at Power over Ethernet (PoE) adapter (GW168PB0). An open-source Ubuntu Linux BSP is provided for quick product development.
