Rugged & Industrial Single Board Computers - VeniceFLEX Family
The VeniceFLEX SBC Family is designed for IoT applications in rugged and industrial environments.
The VeniceFLEX family of industrial single board compuers are built on the NXP™ i.MX 8M Plus processor. This family focuses on wireless flexibility by including flexible sockets that can be either M.2 or Mini-PCIe. They are also CE-ready for European deployments. To compare to the standard Venice Family, read more on the VeniceFLEX vs Venice Comparison page.
Each SBC is made in the USA and features a 64-bit ARM CPU, Flexible expansion slots, multiple Ethernet and an industrial temperature rating. Customization is available here.
View the VeniceFLEX Part Numbering Guide.
All Venice SBCs feature:
NXP™ i.MX 8M Plus Cortex-A53 64-bit ARM 1.6GHz Quad Core Processor with DDR4 DRAM
NXP™ EdgeLock® SE052F: FIPS 140-3 Certification- CE-Ready Design
- Flexible Sockets for Wireless
- Real-Time Clock (RTC) with coin cell battery
- Voltage & Temperature Monitor
Wide Range DC Input Voltage of 8V to 60V - Industrial Operating Temperature from -40 to +85 degrees Celsius
- Linux Software Support of the Following Operating Systems: Ubuntu, OpenWrt & Buildroot
- Low power draw of 3 to 8 Watts
- Fan speed control
NXP™ i.MX 8M Plus Cortex-A53 64-bit ARM 1.6GHz Quad Core Processor with DDR4 DRAM
NXP™ EdgeLock® SE052F: FIPS 140-3 Certification
All VeniceFLEX SBCs feature:
- NXP i.MX 8M Plus Cortex-A53 64-bit ARM 1.6GHz Quad Core Processor with DDR4 DRAM
- NXP™ EdgeLock® SE052F: FIPS 140-3 Certification
- CE-Ready Design
- Flexible Socket Adapters for Wireless
- Real Time Clock (RTC) with coin cell battery
- Voltage & Temperature Monitor
- Wide Range DC Input Voltage of 8V to 60V
- Industrial Operating Temperature from -40 to +85 degrees Celsius
- Linux Software Support of the Following Operating Systems: Ubuntu & OpenWrt & Buildroot (Yocto Optional)
- Low power draw of 3 to 8 Watts
- Fan speed control
View VeniceFLEX SBC features below.
| Feature | GW8100 | GW8200 |
|---|---|---|

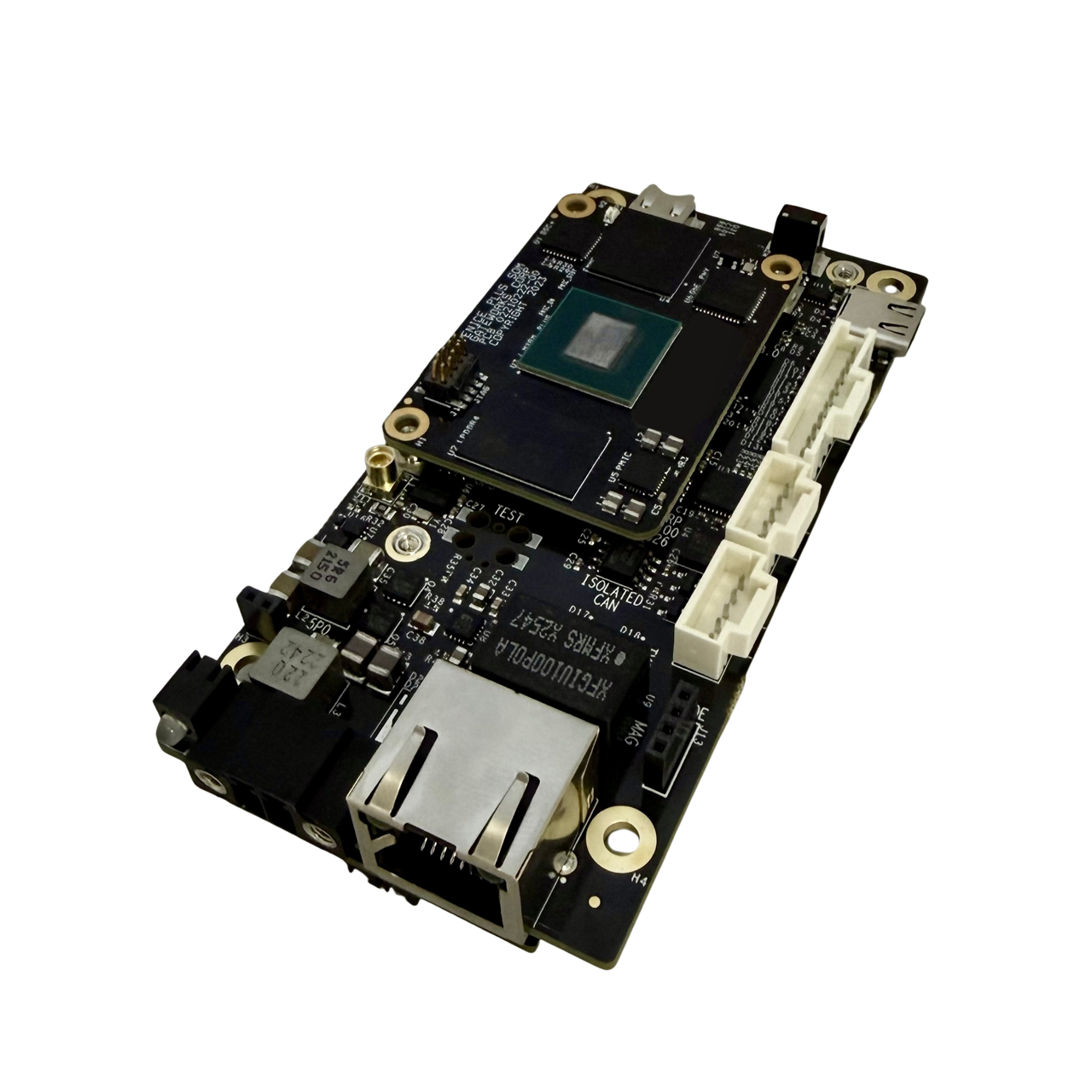

| Product Image |  |
 |
| Product Information | Product Page | Product Page |
| Board Size | 50 x 100mm | 90 x 100mm |
| FSA Sites(2) | QTY 1 (Can be Mini-PCIe or M.2) | QTY 2 (Can be Mini-PCIe or M.2) |
| Network Ports | 1xGbE | 2xGbE |
| ARM Processor | NXP i.MX 8M Plus ARMv8 64-bit 1.6GHz Quad Core with PCIe 3.0 | |
| System Memory | 1GB LPDDR4 (4GB Max) | |
| Onboard Flash Storage | 8GB eMMC (64GB Max) | |
| Wi-Fi, Wi-Fi 6, Wi-Fi 7 | Use Mini-PCIe or M.2 Adapters in FSA sites | |
| Bluetooth / BLE | Use Mini-PCIe or M.2 Adapters in FSA sites | |
| Security | Optional TPM | |
| Video & Audio | None | |
| Serial Ports | 2 RS232 or 1 RS485 2 CAN Bus |
|
| Communication Ports | 1xI2C Bus,1xSPI Bus | |
| Digital I/O | Standard | |
| GPS Receiver | Optional u-blox ZOE-M8 with GLONASS | |
| Front Panel USB | 1xUSB3.0 | |
| Accelerometer | 3-Axis | |
| Flash Storage Expansion | Use NVMe in Mini-PCIe or M.2 Adapters in FSA sites | microSD |
| PoE Support | 802.3af/at (Requires optional PoE adapter) | |
| Input Voltage | 8-60VDC | |
| Temperature Range | -40 to +85C (Industrial) | |
| Software | Linux (Ubuntu, OpenWrt or Buildroot and more) | |
| Development Kit | GW11060 | GW11055 |
(2) FSA, or Flexible Socket Adapters, are sites on the Gateworks SBC that accomodate either Mini-PCIe or M.2 adapters.
Mini-PCIe FSA adapters can be used for Wi-Fi / Wi-Fi 6 / Wi-Fi 7, Cellular, etc.
M.2 FSA Adapters can be used for Wi-Fi, Cellular, NVMe.
Learn more about FSAs on the FSA Primer
Please read more about radios on the FSA Wiki Page.
