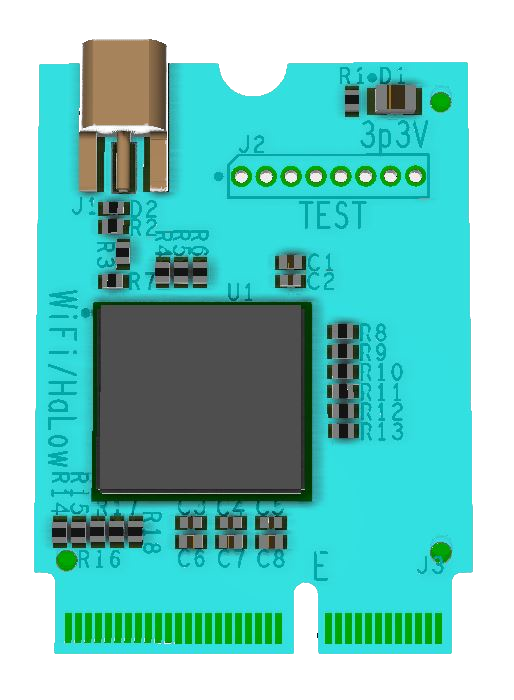

GW16167 802.11ah Wi-Fi HaLow M.2 Radio
802.11ah HaLow radio with Morse Micro MM8108, M.2 2230 E-Key form factor for industrial IoT and embedded platforms.
The GW16167 is a Wi-Fi HaLow (802.11ah) M.2 2230 E-Key card engineered for industrial and IoT applications. Built around the Morse Micro MM8108 system-on-chip, it supports the 850–950 MHz band with up to +26 dBm transmit power, enabling extended range connectivity and robust penetration through buildings, walls and foliage. Standard Linux IP networking stacks are supported and the card interfaces via USB 2.0 (with optional SDIO/SPI) to Gateworks single-board computers
| Key Product Features | |
|---|---|
| Function: | 802.11ah HaLow Wireless (Morse Micro MM8108 Chipset) |
| Frequency: | 850.0 ~ 950.0 MHz |
| Data Rate: | Up to 43.3 Mbps |
| Power: | Up to +26dBm Transmit Power |
| Interface: | USB 2.0 (SDIO & SPI Optional) |
| Form Factor: | M.2 E-Key 2230 |
| Software: | Software Wiki |
| Showcase: | 802.11ah Showcase |
| For Use With: | Gateworks Industrial SBCs |
| Development Kit: | Kits |
- 802.11AH M.2 E-Key Wi-Fi Radio
- Morse Micro MM8108 802.11ah Module
- Based on Morse Micro MM8108 System-on-Chip
- IEEE 802.11ah Wi-Fi HaLow
- Up to 43.3Mbps data rate
- Supports 1/2/4/8 MHz bandwidth
- Access point and station mode
- Security: OPEN, WPA2-PSK(AES), WPA3-OWE, WPA3-SAE
- 850 ~ 950 MHz Frequency
- Up to +26dBm Transmit Power
- MMCX Antenna port
- Uses standard Linux IP framework
- FCC Certified
- Global radio for US & EU operation
- USB 2.0 Communication (SDIO & SPI Optional)
- M.2 2230 E-Key Form Factor with USB Signaling
- Compatible with Venice, VeniceFLEX and other Gateworks SBCs
- Use GW16151 M.2 Adapter for Venice SBCs
- -40°C to +85°C Operating Temperature
- Made in the USA
- 1 Year Warranty
The GW16167 is a low-power, long-range, 900MHz 802.11ah, M.2 2230 E-Key Wi-Fi radio designed to provide Wi-Fi HaLow wireless communication utilizing Gateworks Single Board Computers. The 802.11ah radio is targeted towards Internet of Things (IoT) applications.
The GW16167 features a Morse Micro MM8108 802.11ah module with up to 26dBm transmit power. The radio operates in the 900MHz license-exempt band which allows it to penetrate buildings, walls and foliage much better than standard 2.4G/5G Wi-Fi radios. Additionally, 802.11ah provides a much greater range (1km+) and higher bandwidth (up to 43Mbps) over other Sub 1GHz protocols like LoRa and Sigfox. Other advantages include a higher client count (100+) and lower power. Standard Wi-Fi IP connectivity software, including Linux tools, commands and interfaces are also supported allowing for quick application integration.

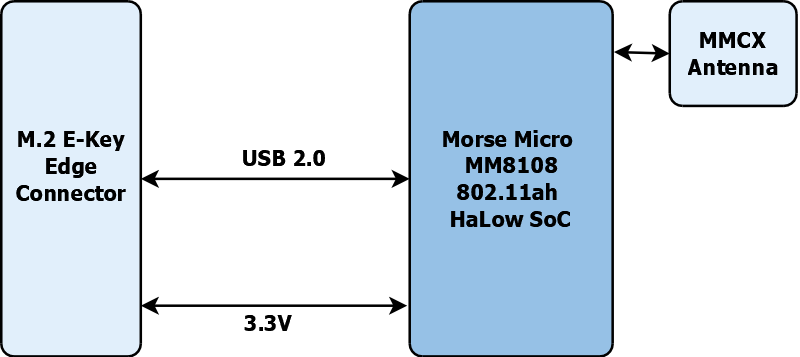

The radio is a global radio for US and EU operation. The Gateworks Single Board Computer communicates to the module using USB signaling which is supported on M.2 E-Key connector interfaces. Compatible with the Gateworks Venice & VeniceFLEX SBC family and other Gateworks SBCs. A robust MMCX antenna connector allows for a variety of external antenna choices. Antenna and cables are sold separately. Use GW16151 M.2 Adapter for Venice SBCs.
*Disclaimer: This Wi-Fi HaLow M.2 Card has only been tested on Gateworks Single Board Computers. Gateworks only provides support when used on a Gateworks SBC.
